Main Differences between Hydraulic Universal Testing Machines

At present, the commonly used hydraulic universal testing machines in the market mainly include digital display hydraulic universal testing machines, microcomputer screen display hydraulic universal testing machines, and microcomputer controlled electro-hydraulic servo universal testing machines. What are the differences between them?

What are the differences between hydraulic universal testing machines?

• Common points of digital display hydraulic universal machine, screen display hydraulic universal machine, and microcomputer controlled electro-hydraulic servo universal machine

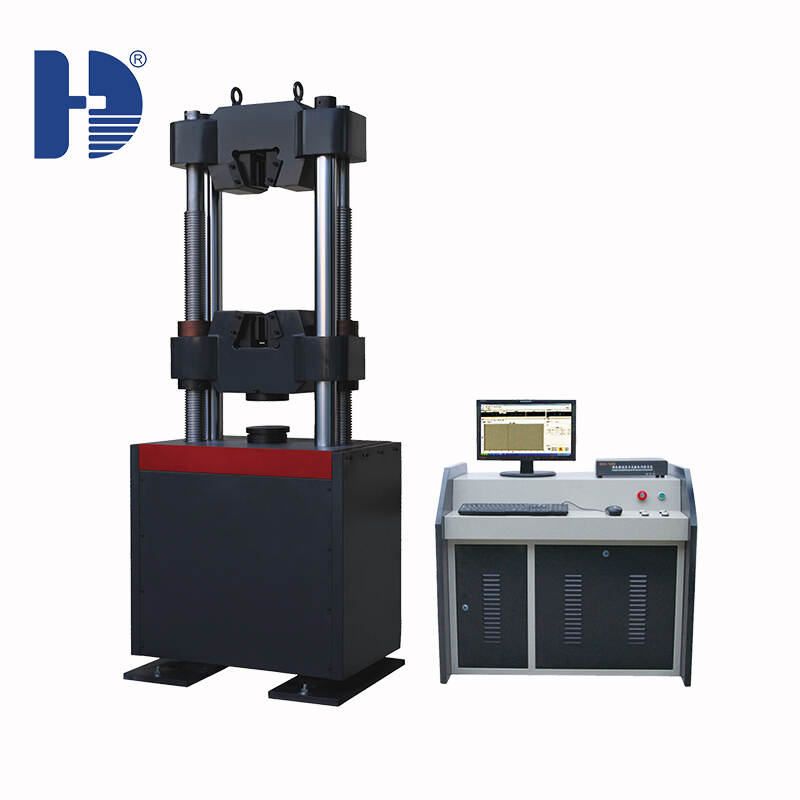

First, their hosts are the same. They are all lower cylinder types. The tensile test space is located above the main machine, and the compression bending test space is located between the lower beam and the workbench above the main machine. Adjust the size of the test space by moving the center beam.

Second, they work in the same way. The high-pressure gear pump is driven by the motor into the oil circuit, flows through the one-way valve, 10u high-pressure oil filter, differential pressure valve group, and oil delivery valve, and enters the oil cylinder. The oil volume in the cylinder meets the loading requirements and the test is completed.

• Differences between digital display hydraulic universal machine, screen display hydraulic universal machine, and microcomputer-controlled electric servo universal machine

First, the comprehensiveness of the display data is uneven. The digital display mainly displays the stress value, strength, stress time curve, and yield strength of the material with obvious yield performance; Screen display and microcomputer-controlled electric servo display various force values, strength, elongation, breaking strength, upper and lower yield points, elastic modulus and various test curves.

Secondly, it is displayed in different ways. The digital display is a liquid crystal display, which displays the test data and results in real-time, while the screen display and electric servo display the test data and results through the microcomputer screen. Finally, the control methods are different. Digital display and screen display control the flow into the oil cylinder by manually operating the oil supply valve and return valve. The computer-controlled electric servo is controlled by the computer-operated hydraulic servo valve.

Maintenance of hydraulic universal testing machine

1. Cleaning and sanitation: during the test, some dust, such as oxide scale and metal debris, will inevitably appear. If not cleaned in time, it will not only cause wear on the surface of some parts but also if this dust enters the hydraulic system of the hydraulic universal testing machine, it will block the valve hole and scratch the piston surface. Therefore, the use after each cleaning is very critical, and the sanitation of the testing machine must be adhered to;

2. Complete the corresponding test with the appropriate fixture, otherwise, the test will not be very successful and the fixture will be damaged: the hydraulic universal testing machine is usually only equipped with the fixture for making standard samples. If it is making non-standard samples, such as steel strand, lap steel, etc., it is necessary to add the appropriate fixture; There are also some super hardness data, such as spring steel., The clamp with special data must be used, otherwise, the clamp will be damaged;

3. Hydraulic oil: we can always check the liquid level of the system oil tank and replenish the oil in time; Generally, change the oil every 2000 to 4000 hours; However, the most important thing is that the oil temperature shall not exceed 70 ℃, and a cooling technology system must be developed and opened when the oil temperature reaches more than 60 ℃;

4. Filter: replace the filter without a blockage indicator every 6 months. The filter is equipped with a locking indicator, which should be monitored frequently. When the indicator gives an alarm, it must be replaced immediately.
