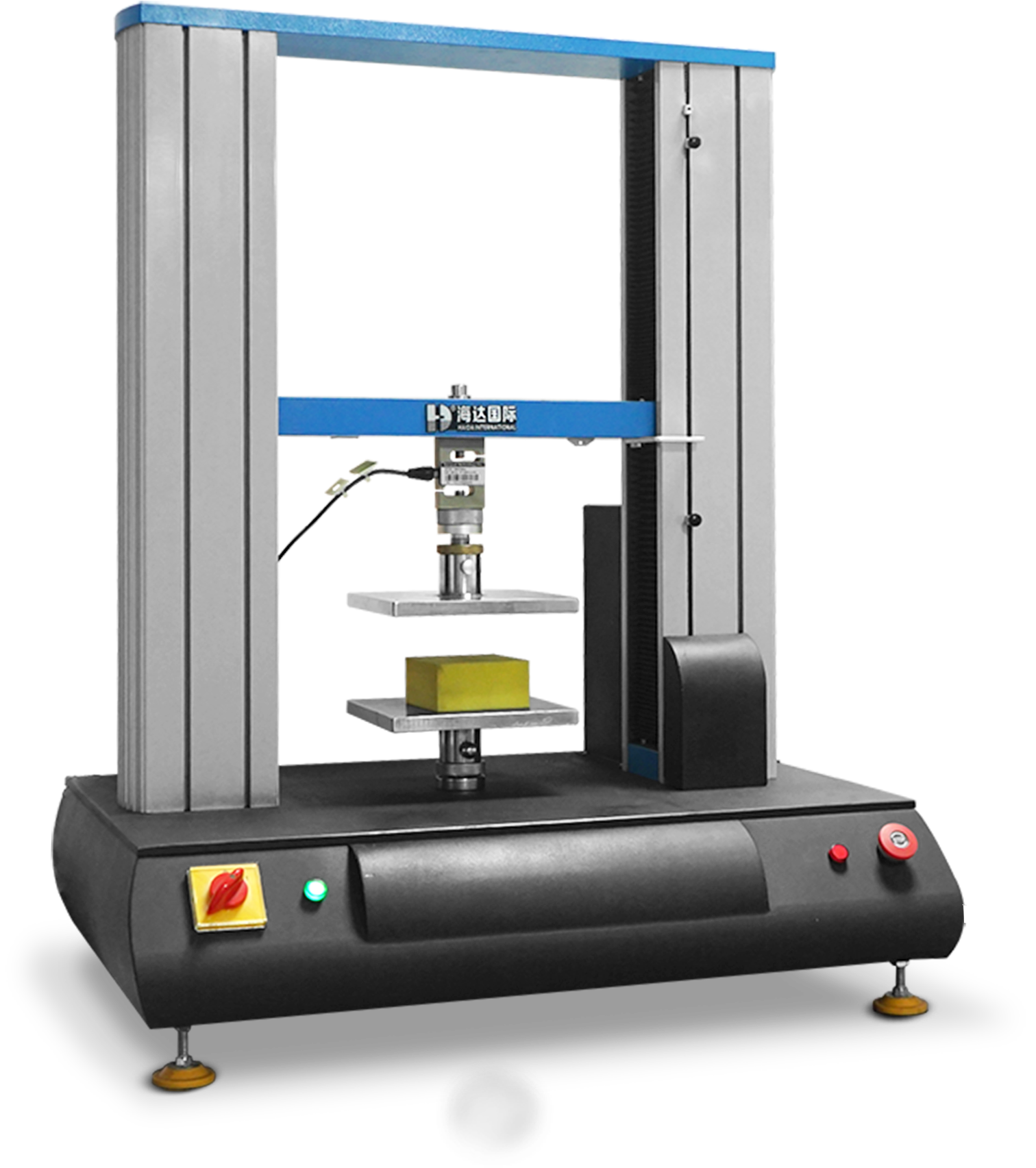

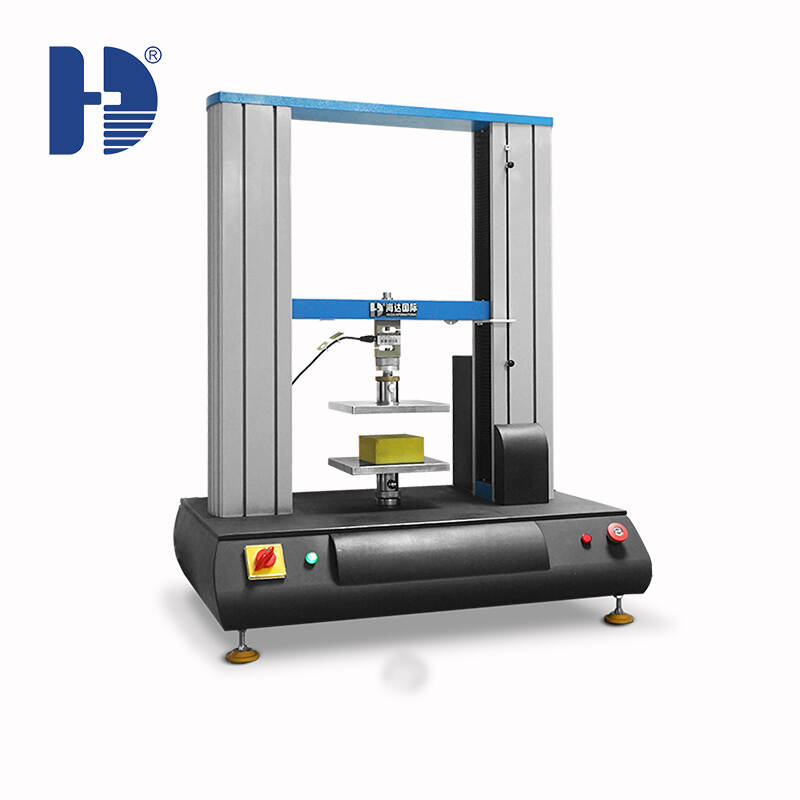

Computer servo universal packaging material testing machine HD-A513-C OEM Wholesale
Quick Details
OEM:
Available
Sample:
Available
Port:
Shenzhen
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin:
China
Supply Ability:
10 per month
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer


OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturerOEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer


PRODUCTS DESCRIPTION

Computer servo universal packaging material testing machine HD-A513-C  is used to conduct Edge Crush test(ECT), Ring Crush Test(RCT), Flat Crush Test(FCT), Pin Adhesive Strength Test(PAT) for paper and paperboard or corrugated board, and flat crush strength (CMT) & CCT (vertical crush strength) of lab corrugating medium. Designed as per standard ISO 13820. Wildly used in packaging  industry.


STANDARD FEATURES

ItemDescription
Capacity 500kg, imported load cell
Load resolution1/250,000
Load PrecisionWithin ± 1%
Motor400w Panasonic servo motor
Operation ModeControlled by PC with software TM 2101, Windows 10 operation
Test Speed0.1-500mm/min(adjustable)
Max. Stroke500mm (excluding fixture)
Platen100*100mm
Effective Space400*500*600mm
Platen Parallelism±0.05 mm
Test unitKgf/Ibf/N
Dimensions(L*W*H)1020*510*1060mm
WeightApprox. 100 kg
Power1∮, 220V, 50Hz, 2A

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1170x660x1260m

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 180kg


Feature:

1.Sturdy body with four bases to enhance the stability of the device when operation

2.Adopt a fixed lower plate and a high-precision load cell to ensure the rapidness and accuracy of the force data acquisition and high measurement accuracy.

3.Controlled by Computer and TM 2101 Software, windows 10 mode operation, with the function of real-time display compression test curve, data analysis management, saving, printing and other functions.

4.Test result can be output with WORD, PDF and EXCEL for data analysis.

5.Can equip with different accessories to conduct 6 kinds of tests, including Edge Crush test(ECT), Ring Crush Test(RCT), Flat Crush Test(FCT), Pin Adhesive Strength Test(PAT) and flat crush strength (CMT) & CCT (vertical crush strength) , is a multifunctional testing machine

6.Test speed can be adjusted in the software to adapt different test requirements from customers.



SOFTWARE – TM 2101

OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer

*Setting interface of software and can set different parameters for ECT, FCT, RCT, CMT etc.*

OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer

*Test result for ECT and all program has multi-curve which can be saved easily & print out*



ACCESSORIES FOR HD-A513-C

OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturerOEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer

ECT & PAT CUTTER                                      GUIDE BLOCK FOR ECT


ItemDescription
ModelHD-A514
Cutting the specimen width25, 100 mm
Cutting Depth< 8 mm
Dimensions550×450×160 mm
Weight36Kg

PIN ADHESIVE STRENGTH TEST(PAT)

OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturerOEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer


ItemDescription
ModelHD-A516
Sample Size100×25mm
Upper supporterA, B, C corrugated paper, each with 3 pieces
Lower supporter1 piece
WeightAround 2kg
Package dimension217*125*98mm / Aluminum box


OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturerOEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer


RCT SAMPLE CUTTER                     RCT DISC ACCESSORIES


OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturerOEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer


DESCRIPTION

This cutter specially cuts the sample for ring crush test and other test and its knife edge combination is precise to make the edge even.

ItemDescription
ModelHD-A515 RCT sample cutter
Sample152×12.7 mm for RCT
Dimensions670×450×470 mm
Weight20Kg
ModelHD-A522 RCT Disc accessories
Circular Width0.1mm-0.58 mm (total 10 specifications)
PackingAluminum Box
Packing size(L×W×H) 220×125×102mm
Weight6kg


OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturerOEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer


FCT SAMPLE CUTTER     SUPPORT BLOCK FOR FCT TEST


ItemDescription
ModelHD-A517
Cutting diameter90.6±0.5mm; 112.8±0.5mm; 64±0.5mm;(Optional)
Specimen area64.5cm2; 100 cm2; 32.2 cm2


HD-A840 CONCORA MEDIUM FLUTER

OEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturerOEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturerOEM Wholesale Computer servo universal packaging material testing machine HD-A513-C manufacturer

It is used to make samples for CCT/CMT for testing flat crush strength and vertical crush strength of corrugating medium.

ItemDescription
Speed4.5r/min
Temperature Resolution1°C
Temperature RangeRoom temperature-200°C
Work Pressure(49-108)N
Standard Work Temperature175°C
Spring Tension100N
Dimension564mm*377mm*330mm
PowerSingle phase, AC 220V±22V,50Hz
