 package Zero Drop impact Tester HD-A520-3 OEM Wholesale

PRODUCT DESCRIPTION

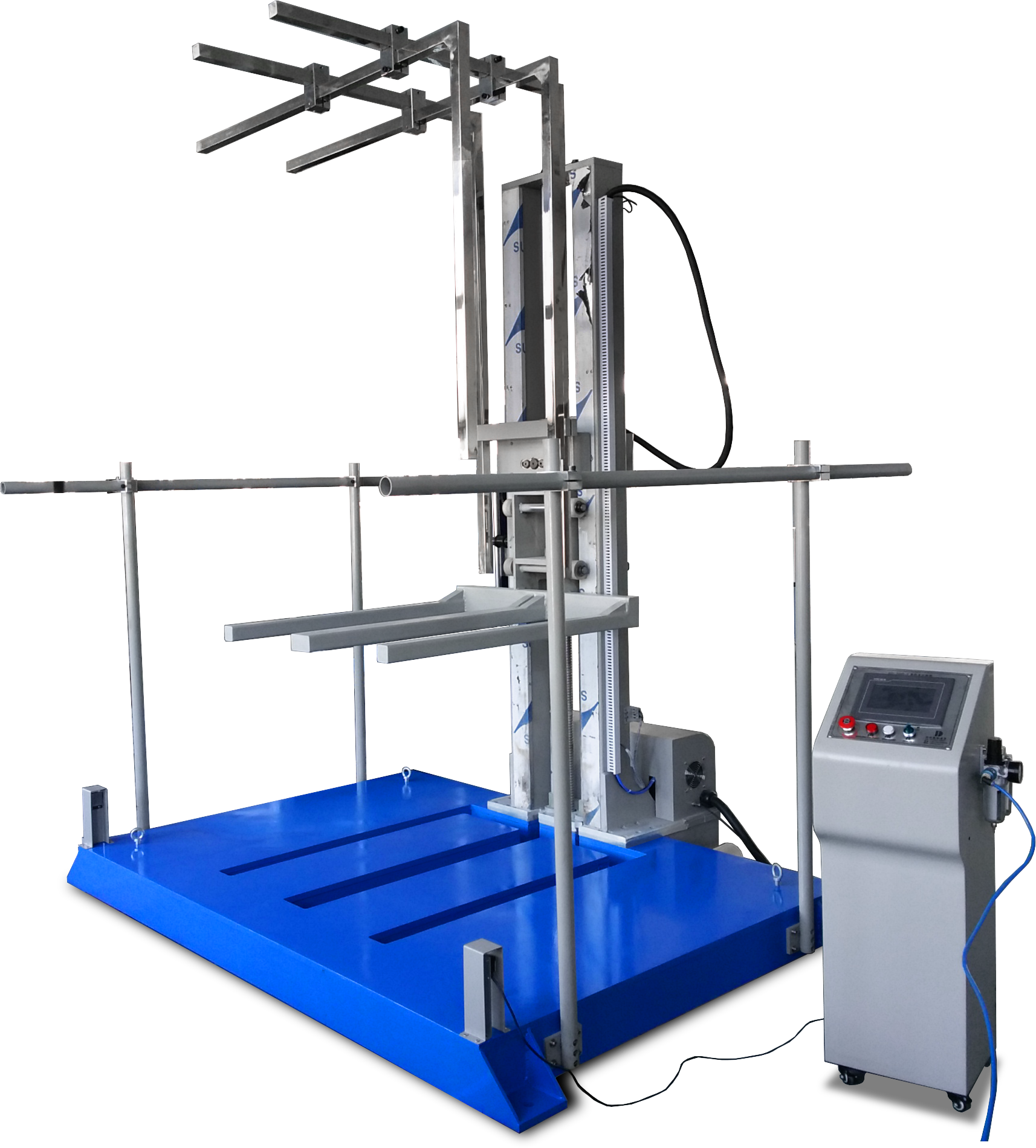

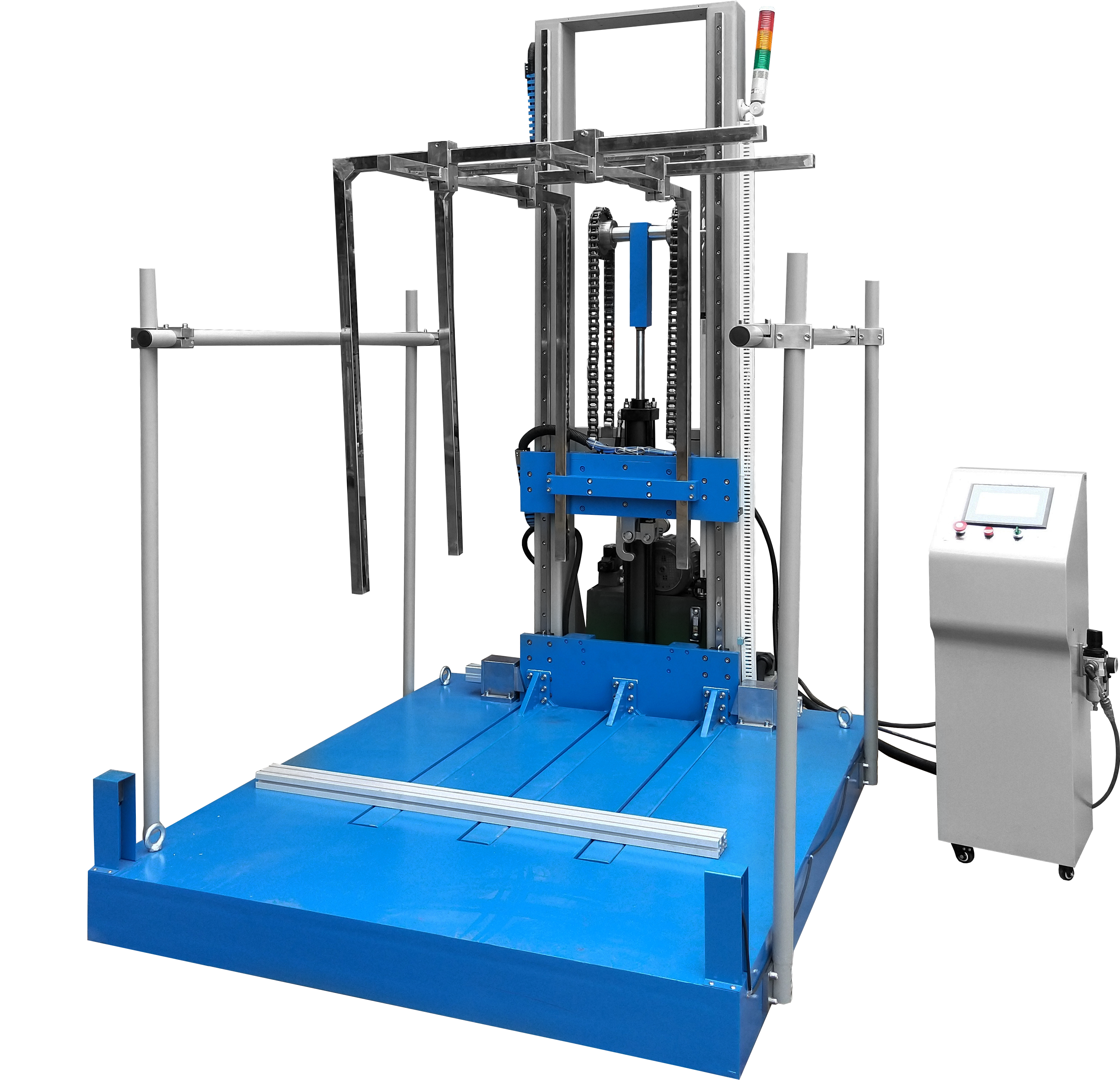

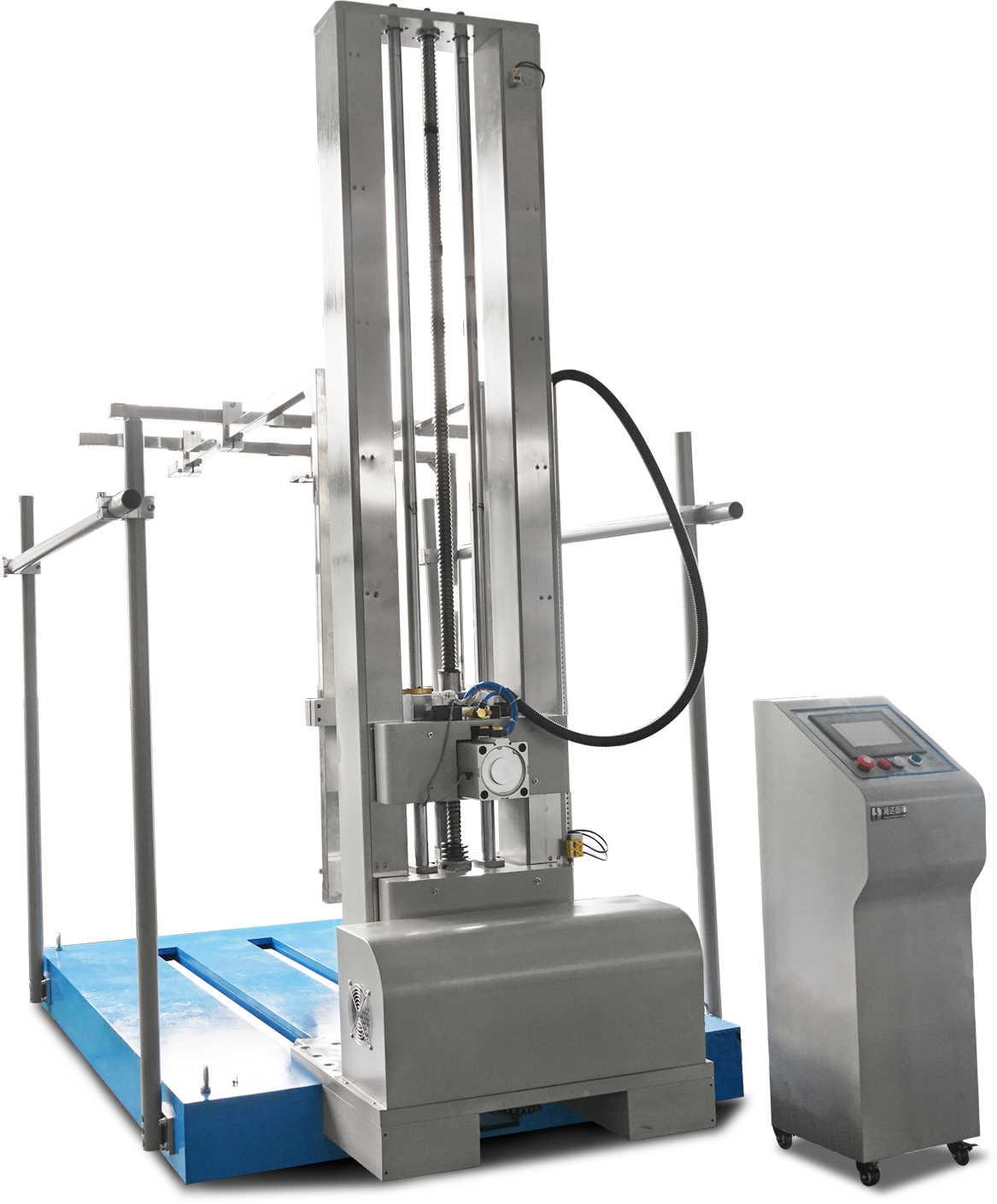

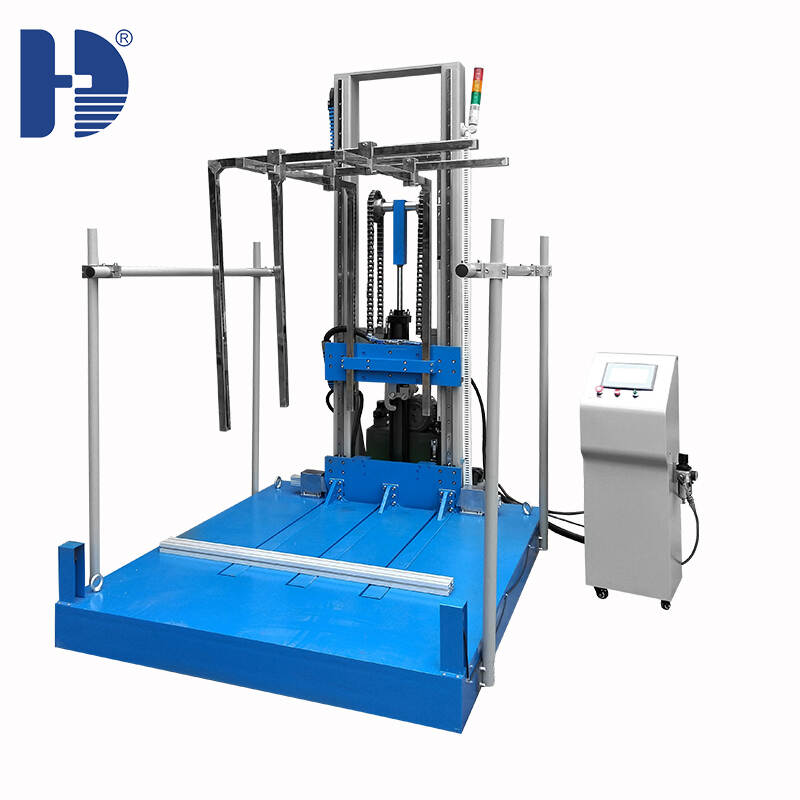

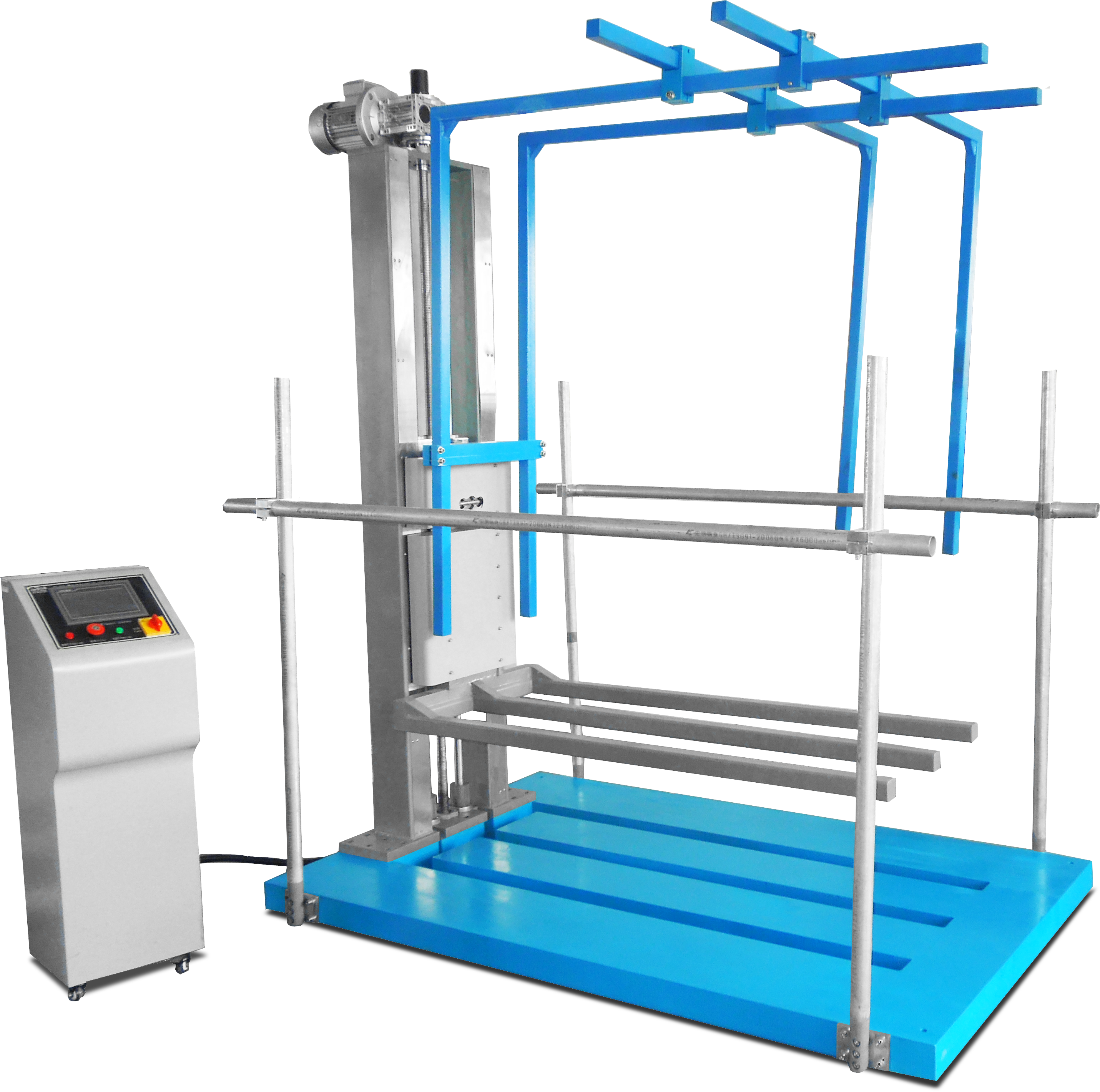

HD-A520-3 Zero Drop Tester is mainly used to evaluate the damage by drop impact on the package during actual transportation, loading and unloading, and to assess the impact strength of the package and the rationality of the package design during the transportation process.





STANDARD SPECIFICATIONS

Sample max. load500KG
Size of the package(L*W*H)Max. Dimension 1200*1200*1200mm (custom design)
Drop height0-1000mm (Adjustable)
Test speed4m/min
Drop testCorners, edges , faces of sample
Drive modeHydraulic cylinder and Air cylinder
Protection deviceInduction type protection device
Panel material45# steel, solid steel plate
Arm material45# steel

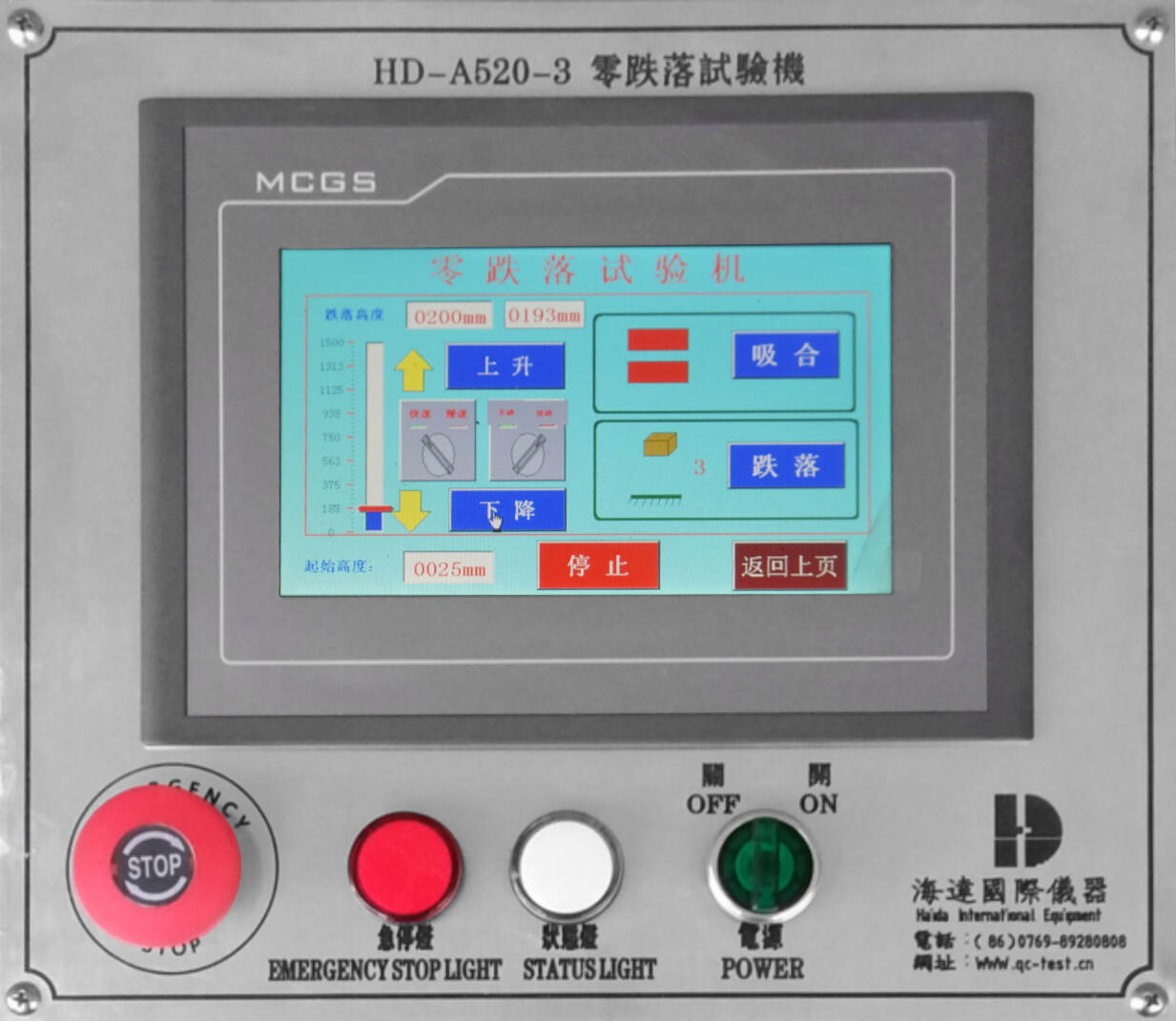

Height display modeTouch Screen
Operate modeCircuit board control
Drop methodElectromagnetic and pneumatic comprehensive support
PackageStrong wooden case
Package Weight800KG
PowerThree- Phase, AC380V, 50/60Hz
Outside dimension (L*W*H)2300*1500*1950mm



Feature

l It is mainly used for drop test of larger packages;

l The data is highly precise, using hydraulic cylinder and air cylinder, with high efficiency;

l Easy operation, using MINOR displacement sensor, high accuracy;

l Intelligent design such as limit protection, overload protection and automatic return to ensure safe operation;

l In the process of releasing the sample, the sample can not contact any part of the device to ensure that it can fall freely.



Application

HD-A520-3 Drop Tester is mainly used to test angles, faces and corners of package.

This machine can freely set the drop height, which can make the sample fall freely instantly.



TEST STANDARD

ISTA, GBT 4857.5-92



GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 2600*1500*2600mm

Power supply source: Three-phase, 380V±10%, 50/60Hz (can be appointed)

Gross Weight: 2000kg



Company Introduction

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 10 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



See what company you will work with?

1. Professional Manufacturer of various kinds of testing equipments over 10 years, defect rate is controlled under 0.02%.

2.  Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured.

3.  ISO 9001:2008 Quality Management System Certificate.

4. OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by…

5. Our Marketing Investigation Department will send Marketing Research Report to you each season.

6. We are trusted by SCS, INTERTEK, HST, COFCO, ESC, KBMC, LENOVO, PANASONIC, EMC, etc.

7. We accept 100% inspection.

8. Guarantee Period: 365 days, After Sales Service Department provides professional service with you, any questions, just contact us.

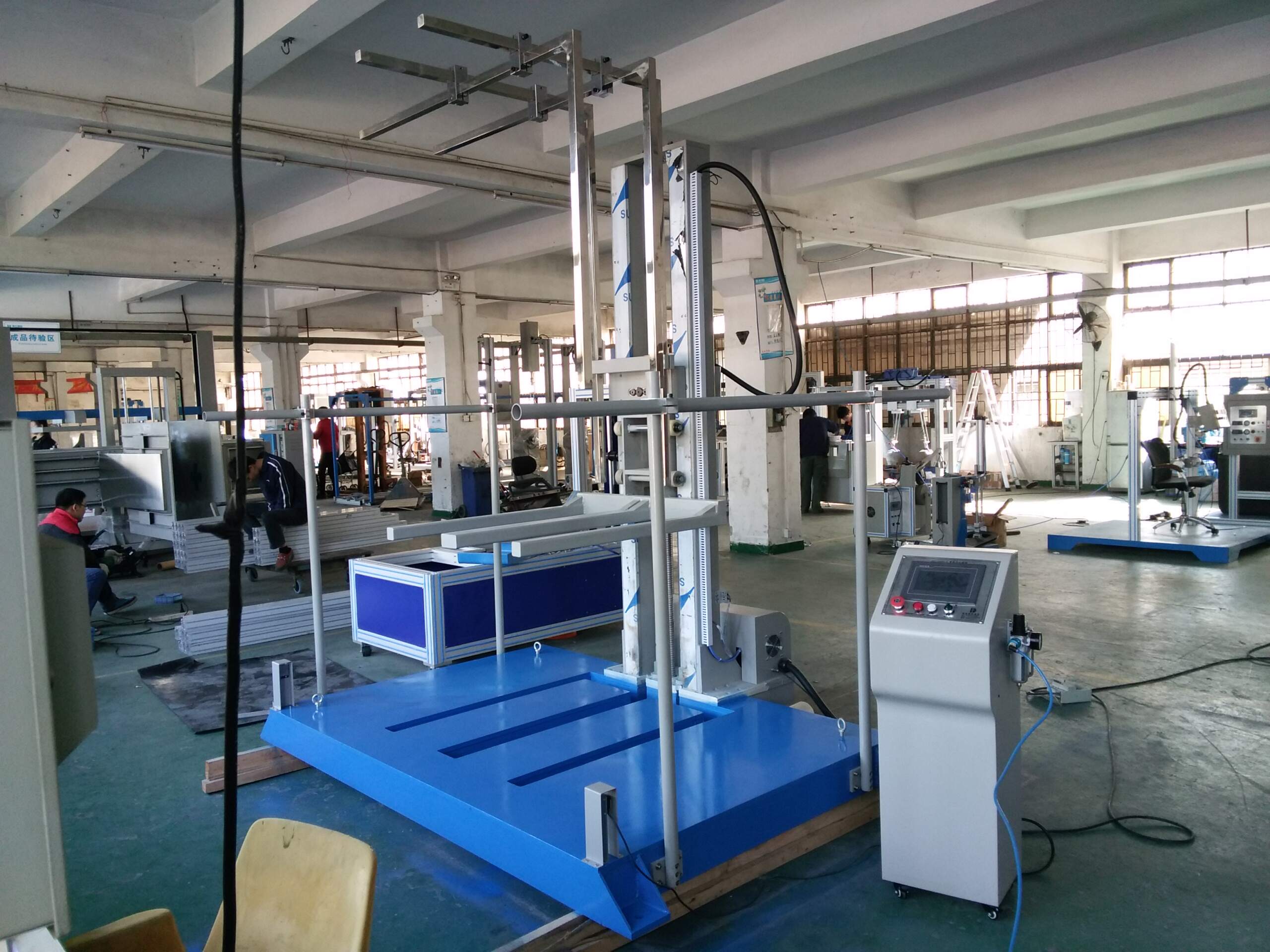

FACTORY PHOTOS
