HD-E802-1 UV Aging Chamber - UVA
EQUIPMENT DETAILS
Q-test PLC controllerChamber structure
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1490*620*1620mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 180kg
HS Code: 8479899990
STANDARD FEATURES
| Item | Specification |
|---|---|
| Chamber dimension (W*D*H) | 1300*500*1460mm |
| Chamber material | SUS#304 stainless steel |
| Temperature range | RT to 70℃ |
| Temperature fluctuation | ≤±1.0℃ |
| Temperature uniformity | 3℃ |
| Humidity range: | ≥75%RH |
| Controller | Programmable controller, LCD touch screen |
| Control mode | Balance temperature humidity control (BTHC) |
| Test cycle setting | Exposure, condensation and water spray test cycle is programmable |
| Water spray cycle | Spray 18mins in every 120mins / spray 12mins in every 60mins |
| Water usage | 8L/day |
| Distance from sample to lamp | 55±2mm |
| Centre distance betweenlamps | 65~70mm |
| Irradiance range | 0.45~0.90W/m2 |
| UV lamps | Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime) |
| Lamp power | 40W/Piece |
| Specimen Size | 75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm |
| Testing time | 0~999H, adjustable |
| Protection system | Overload short circuit protectionOver temperature protectionWater lacking protectionEarth leakage protectionAuto shut off protection |
APPLICATIONS
1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
TEST CRITERIA
ISO 4892-3
ASTM G154
EQUIPMENT IMAGE
Sample tray

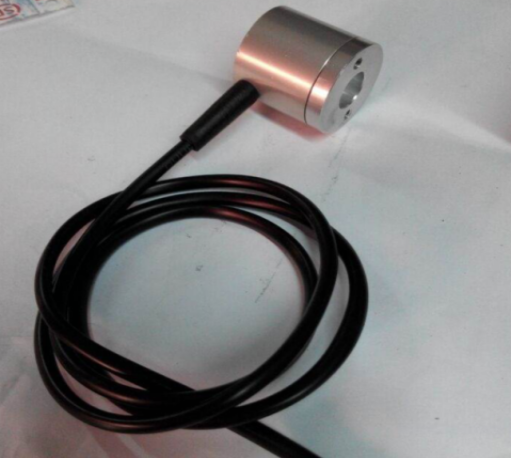

Atlas UV lampsIrradiance meter Irradiance meter
