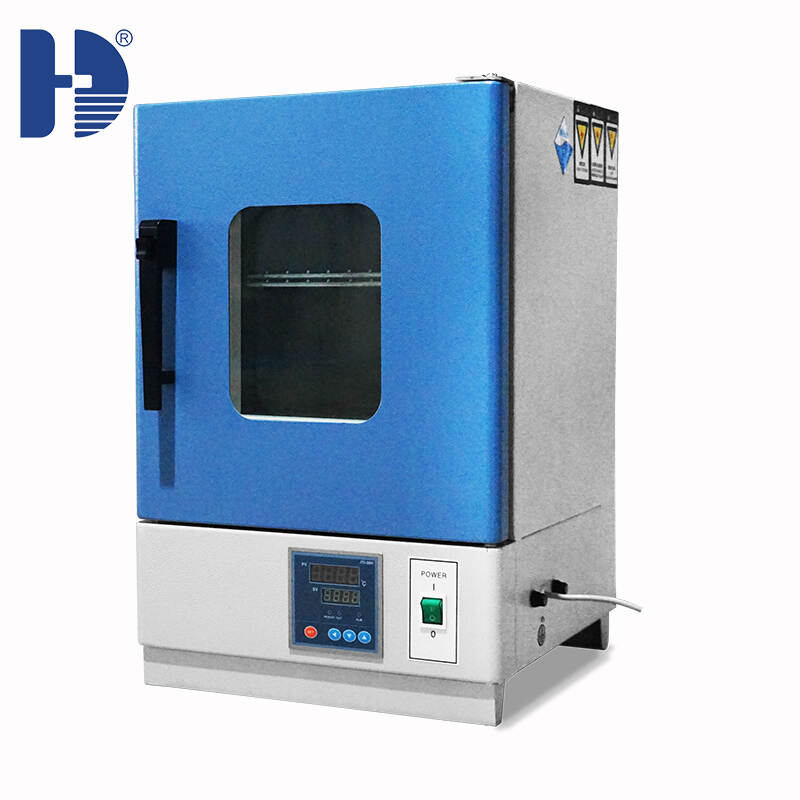

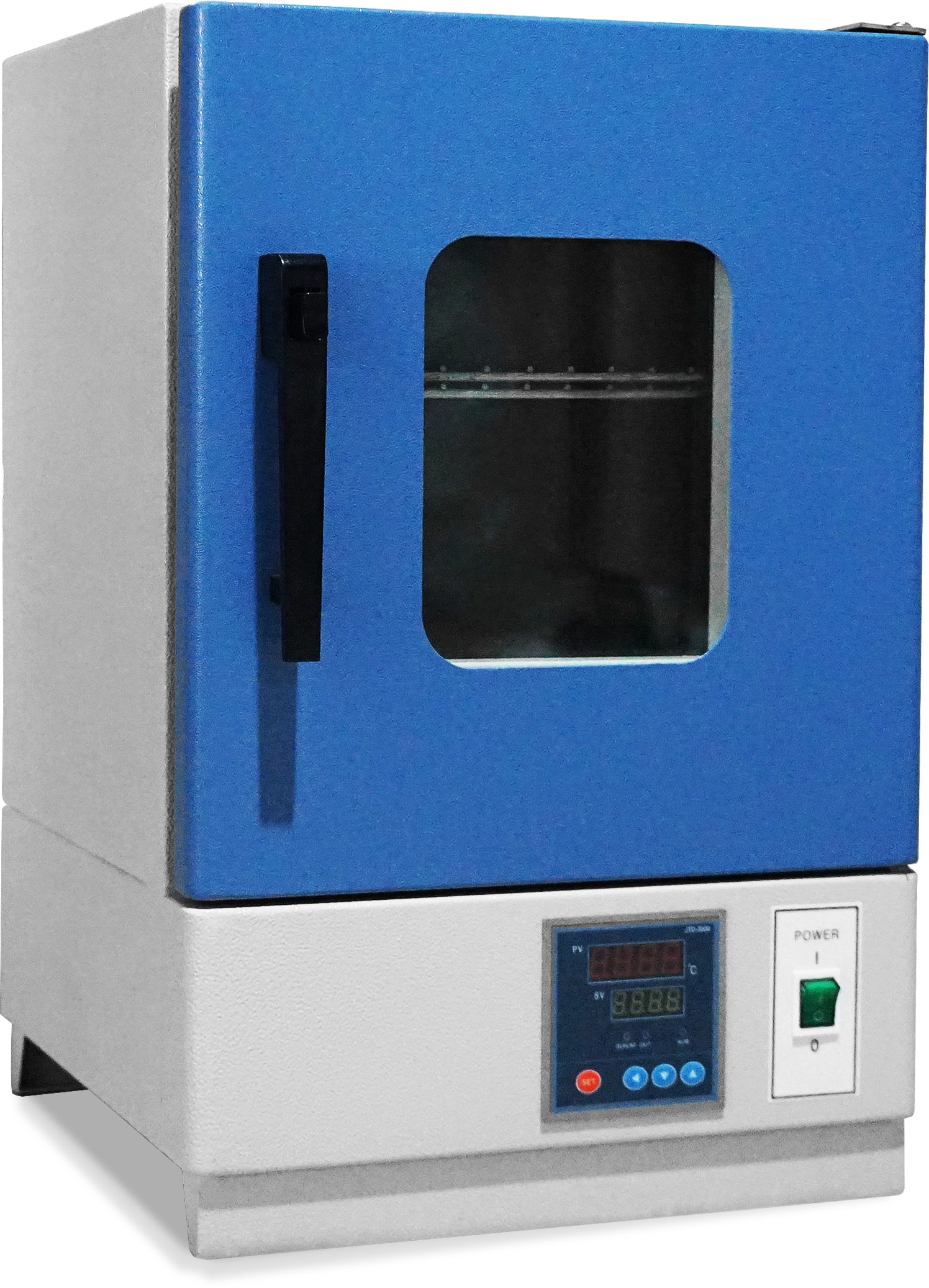

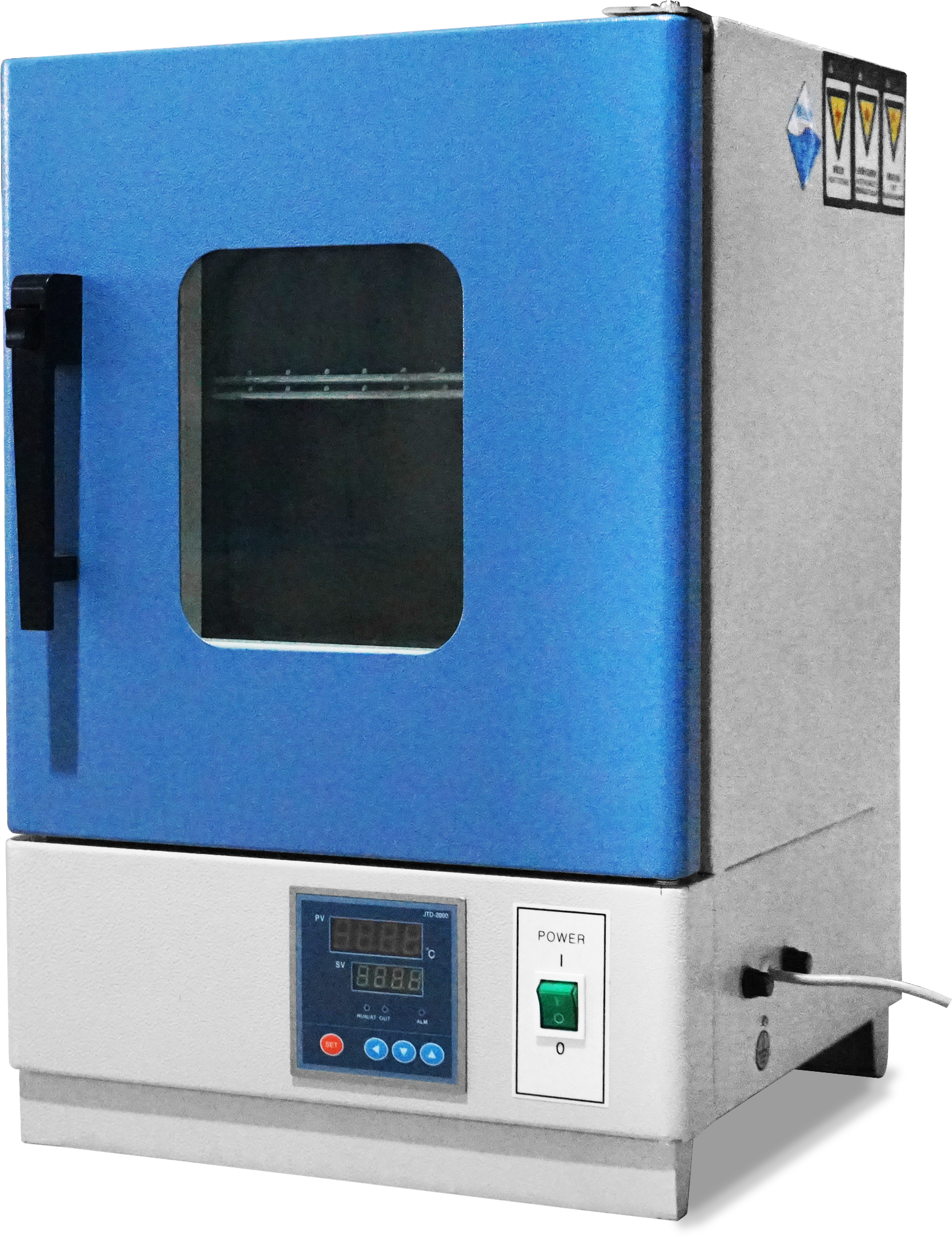

HD-E804-1000A Drying Oven

Quick Details
OEM:
Available
Sample:
Available
Port:
Shenzhen
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin:
China
Supply Ability:
10 per month
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier




GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1600*1400*1600mm

Power supply source: three phase, 380V±10%, 50Hz (can be appointed)

Gross Weight: 350kg

HS code: 8419399090



STANDARD FEATURES

Item

Specification

Temperature range

Ambient ~ 250

Internal dimension (W*D*H)

1000*1000*1000mm

External dimension (W*D*H)

1400*1200*1400mm

Temperature control accuracy

± 1

Controller

LED display, PID Temperature Control & Timing Device

Internal material

Stainless steel

External material

Galvanized steel plate

Insulation material

High density silicate insulation fiber, high temperature resistant sealer

Sample tray

Stainless steel, 2pcs

Protection device

Over Temperature Protection, Heater Short Circuit, Motor Overheating & Leakage.

Alarm

Audible and visual alarm



MACHINE CONFIGURATION

1. Multiple centrifugal fan with air circulation system for uniform temperature distribution.

2. Intelligent temperature control system with digital display and PID control function.

3. With safety exhaust hole on the back side of the chamber, which can auto release pressure when has gas expansion in the internal chamber.

4. Control system has independent digital power offer protection system when over temperature.

5. High temperature resistant silicone sealing strip for safety and environmental protection.

6. Timing device.
