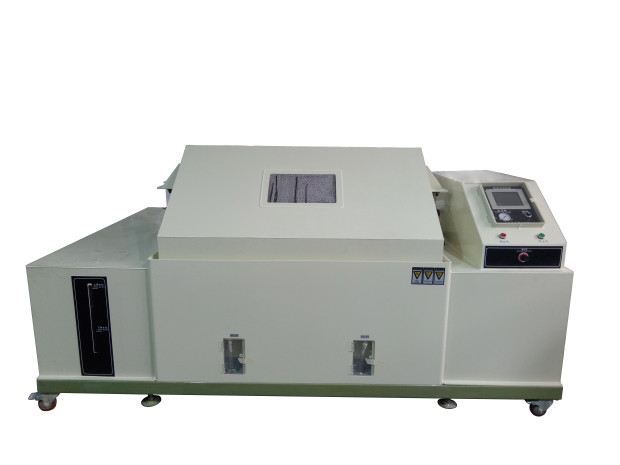

HD-E808-120A Salt Spray Chamber

Quick Details
OEM:
Available
Sample:
Available
Port:
Shenzhen
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin:
China
Supply Ability:
10 per month
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

EQUIPMENT DETAILS



Inner Chamber


GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 2150*1550*1650mm

Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)

Gross Weight: 250kg

HS Code: 8479899990





STANDARD PARAMETERS


Model

HD-E808-120-1

Internal Size (W*D*H)

1200*1000*500mm

External Size (W*D*H)

1900*1300*1400mm

Equipment Material

P.V.C rigid plastic plate, thickness 8mm

Sample tray

Diameter 10mm glass fiber rod, anti-rust

V-shape plastic steel to make sure sample in 15~30 degree inclined

Temperature Range

Room temperature ~ 55

Temperature Fluctuations

≤±0.5

Temperature Uniformity

≤±2

Temperature Precision

±1

Spraying method

Continuous and Periodic spray type

Test Chamber Temperature

Salt Spray Method (NSS ACSS)35±1
Corrosion-resistant Testing Method (CASS) 50±1

Saturated air Barrel Temperature

Salt Spray Method (NSS ACSS)47±1
Corrosion-resistant Testing Method (CASS) 63±1

Brine Temperature

35±1

Spray Quantity

1.0~2.0 ml / 80cm2 / hr

PH value

Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2

Lab Volume

600L

Brine Tank Capacity

40L

Multiple Safety Protection Devices

Current discharge protection, over pressure protection, over temperature protection, over load fuse protection

Accessories

Testing Salt/ Measuring tank/Nozzle Equipment x 1 set

Air source

1HP Air pump (provided by buyer)

Test criteria

ASTM B117-08, ISO 9227...



PRODUCT FEATURES

1. Durable 8 mm PVC construction, anti-corrosion and easy to clean.

2. Reservoirs with mixing system on stand.

3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.

4. Exposure zone lined with corrosion-resistant PVC sheets.

5. Clear cover allows viewing of test conditions.

6. Peaked cover prevents dripping of condensation onto samples.

7. Water seal and water level protection system.

8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.

9. Automatic DI water fills to humidifying tower.

10. Digital temperature control.

11. Integral over-protection on heaters.

12. Low water cut-off protection on humidifying tower.


EQUIPMENT IMAGES




                                                 Sodium chloride (testing salt)                                                                Measuring tank


Spray nozzle
