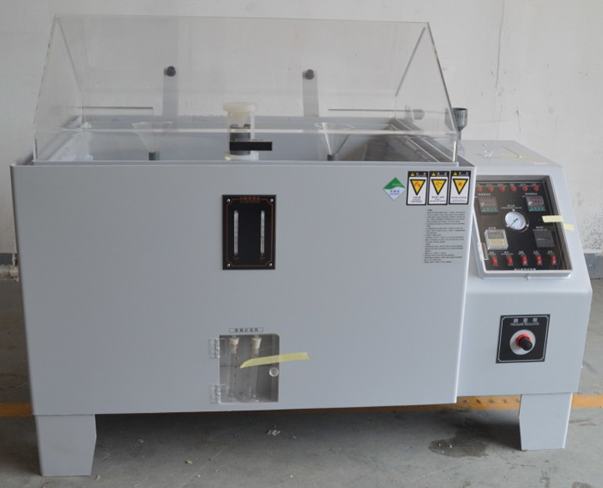

HD-E808-90 Salt Spray Chamber
HD-E808-90 Salt Spray Chamber DETAILS

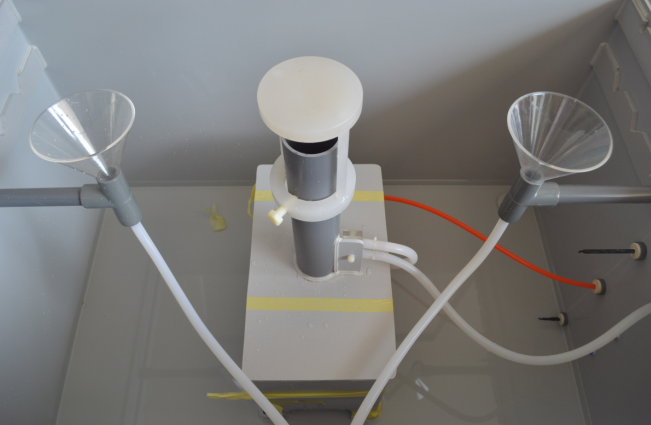

Control panel Inner Chamber
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1610*1080*1480mm
Power supply source: single-phase, 220V±10%, 50Hz
Gross Weight: 150kg
HS Code: 8479899990
STANDARD PARAMETERS
| Model | HD-E808-90 |
|---|---|
| Internal Size (W*D*H) | 900*600*500mm |
| External Size (W*D*H) | 1410*880*1280mm |
| Equipment Material | P.V.C rigid plastic plate, thickness 8mm |
| Sample tray | Diameter 10mm glass fiber rod, anti-rustV-shape plastic steel to make sure sample in 15~30 degree inclined |
| Temperature Range | Room temperature ~ 55℃ |
| Temperature Fluctuations | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spraying method | Continuous and Periodic spray type |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃ |
| Brine Temperature | 35℃±1℃ |
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
| PH value | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Lab Volume | 270L |
| Brine Tank Capacity | 25L |
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
| Accessories | Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
| Air source | Air pump (provided by buyer) |
PRODUCT FEATURES
1. Durable hard 5 mm PVC construction, anti-corrosion and easy to clean.
2. Reservoirs with mixing system on stand.
3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4. Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6. Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.
8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.
10. Digital temperature control.
11. Integral over-protection on heaters.
12. Low water cut-off protection on humidifying tower.
EQUIPMENT IMAGES
Sodium chloride (testing salt) Measuring tank
Spray nozzle
