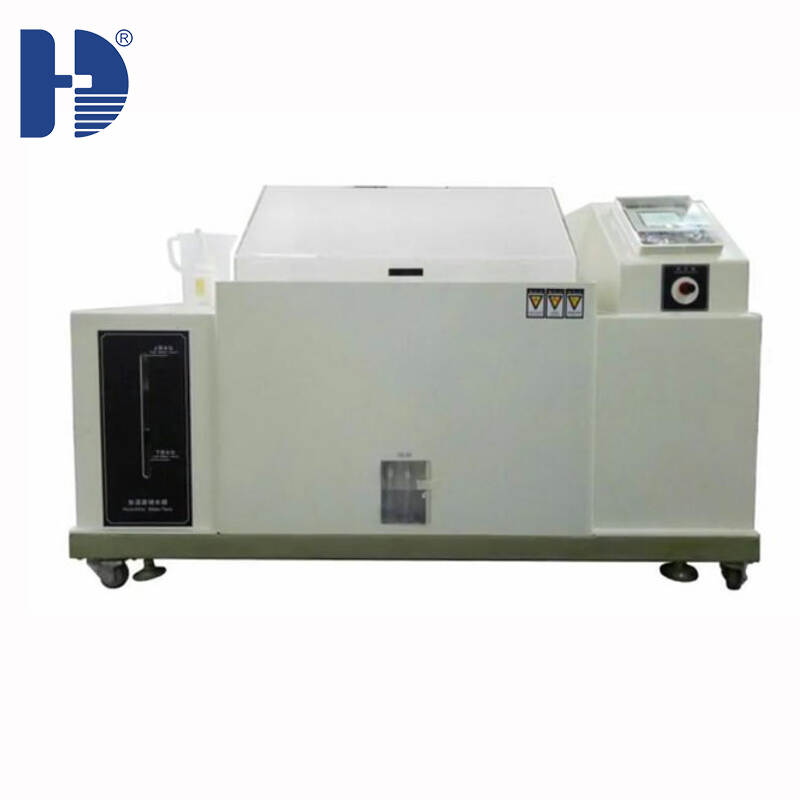

HD-E808-90C Cyclic Corrosion Test Chamber
Quick Details
OEM:
Available
Sample:
Available
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin:
China
Supply Ability:
10 per month
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

The salt spray corrosion test box has passed the assessment of the salt spray corrosion ability of the material and its protective layer, as well as the comparison of the process quality of similar protective layers. It can also assess the salt spray corrosion resistance of certain products; this product is suitable for parts and electronics Salt spray corrosion test of components, metal materials and industrial products.



STANDARD PARAMETERS



Model

HD-E808-90C corrosion test chamber

Internal size (L*W*H)

900*600*500mm

External size (L*W*H)

1410*880*1280mm

Temperature range

Room temperature: 25~60℃±2℃ (No humidity below 25℃)

Humidity range

Humidity:30% - 98%RH±3RH

Temperature fluctuation

±2℃

Humidity range

30% - 98%

Humidity fluctuation

±3%RH

Salt spray test



Concentration of salt solution: 5%

Spray quantity: 1.0~2.0 ml / hr / 80cm2

Spraying method

Continuous and Periodic spray type

Test

Items

1.NSS Corrosion Test

chamber temperature:35℃±1℃,

Saturated air barrels: 47℃±1℃

2.CASS Corrosion Test

chamber temperature:50℃±1℃,

Saturated air barrels: 63℃±1℃

3.Dry-off Test

chamber temperature:60℃±1℃,

Humidity Rate:30%±3%RH

4.Humidity Test

chamber temperature:25℃~50℃±1℃,

Humidity Rate: 30%~98%RH±3%RH

Lab volume

270L

Brine tank capacity

25L

Equipment material

Both inside & outside shell adopt P.V.C rigid plastic board

Multiple safety protection devices

Over pressure protection, over temperature protection, over load fuse protection

Air source

Air compression pump, pump capacity with 60L or above

(provided by buyer)

Power supply source

Single-phase, 220V±10%, 50/60Hz

Test Standard

ASTM G85







CHAMBER MATERIAL



Item

Specification

Internal chamber

High temperature resistant 8mm PVC, anti-corrosion and easy to clean

Chamber cover

High temperature resistant 10mm PVC

Saturated barrel

8mm PP impact resistance plate, high temperature and corrosion resistance, equipped with water level indicating device

Heating system

Titanium electric heater, corrosion resistance

Blower

Multi-blade blower

Water pump

Corrosion resistant pump

Solenoid valve

JPA series

Sample shelves

Test Angle: 15 ° - 30 °, adjustable

Viewing window

Double vacuum organic glass

Controller

PLC controller, touch screen

Water supply

Adopts automatic water charging system for long time operation.



Corrosion Test Chamber Feature

1, Double layers sample placing design to improve the usable area of internal chamber.

2, Adopt high precision temperature and humidity controller for temperature, humidity and drying tests.

3, Two poles air inlet decompression to ensure stable spray pressure.

4, Spray tower has conical disperser to lead and adjust the uniformity and dripping volume of salt fog.

5, Perfect safety protection device with audio alarm and auto stop function.

6, Have saturate process for spray compressed air to ensure stable test environment and prevent nozzles from block.

7, With time controller for auto power off when setting time arrive.



 Corrosion Test Chamber Details

corrosion test chamber

corrosion test chamber

corrosion test chamber

Inner Chamber



 Programmable Controller















































corrosion test chamber

Bending  machine



corrosion test chamber cutting machineEnvironmental Tester Lab

Cutting machine                                                              Environmental Tester Lab



Universal Tester LabChamber in stock

Universal Tester Lab                                                        Chamber in stock



Chamber in stock

Corrosion Test Chamber Line and Stock



GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1610*1080*1480mm

Power supply source: Single-phase, 120V±10%, 50/60Hz (can be appointed)



HS Code: 8479899990
