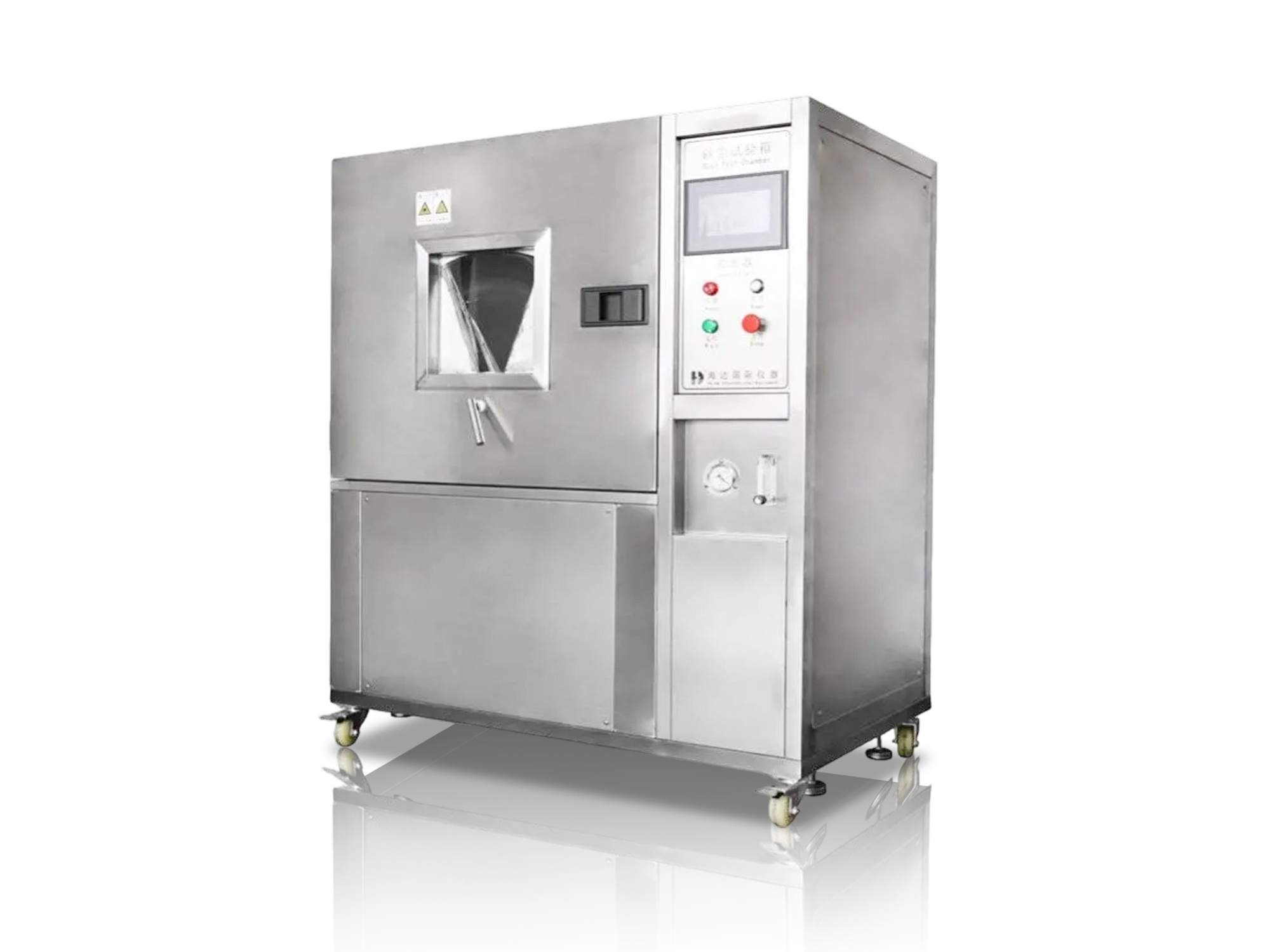

The Dust Test Chamber is a precision environmental testing instrument designed to accurately simulate natural dust and sand conditions. It evaluates the dust ingress protection capability of product enclosures and determines the IP dust protection rating in accordance with international standards. This chamber is widely used by laboratories, certification bodies, and manufacturers to validate the sealing effectiveness of product casings against fine particulate contamination.
The Dust Test Chamber is a precision environmental testing instrument designed to accurately simulate natural dust and sand conditions. It evaluates the dust ingress protection capability of product enclosures and determines the IP dust protection rating in accordance with international standards. This chamber is widely used by laboratories, certification bodies, and manufacturers to validate the sealing effectiveness of product casings against fine particulate contamination.
| Item | Specification |
| Internal dimension | 800W*800D*800Hmm |
| External dimension | 1300W*1000D*1700Hmm |
| Test sample | Size W20cm- L30cm-D15cm, weight 0.5kg |
| Chamber material | SUS304 Stainless steel |
| Specifications of square mesh sieve | Mesh hole 75um, mesh metal wire diameter 50um |
| Talcum powder amount | 2kg/ m³ |
| Airflow speed | No more than 2m/s |
| Door | Left open door with tempered glass door |
| Controller | PLC Touch Screen controller, programmable to set as below cycle: a. Blowing dust time (Stop/Blow) m/s b. Cycle time: can be adjusted c. Pre-set test time: 0s ~99m99s |
| Vacuum system | Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
| Vacuum pump capacity | 60-600 L/H |
| Fan | Centrifugal fan |
| Safety protection devices | Meter over-temperature function, Phase shortage protection, Power short-circuit protection |
