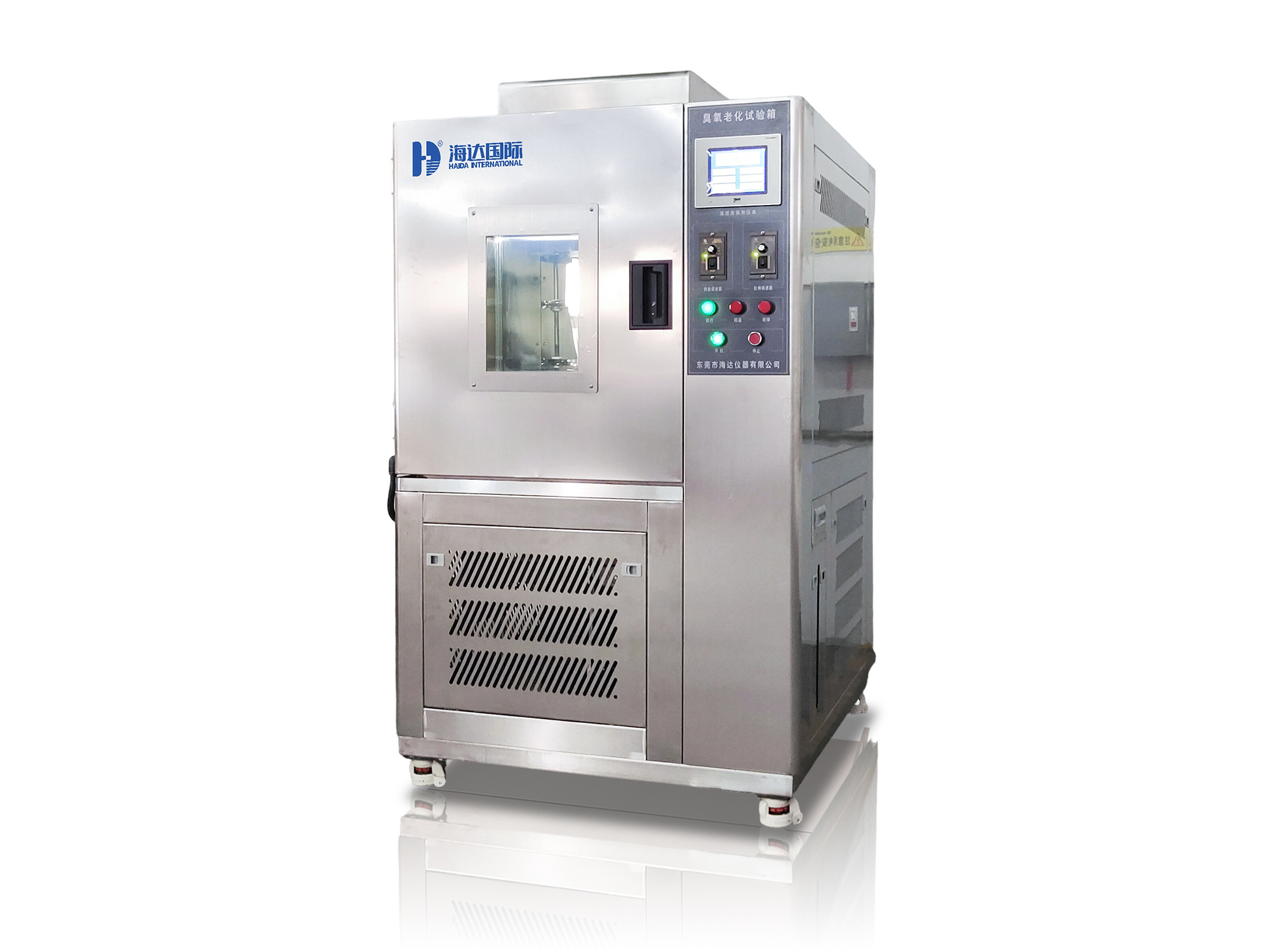

The Ozone Resistance Test Chamber is a specialized environmental test chamber designed to evaluate the ozone resistance and anti-aging performance of rubber and elastomeric products. By simulating natural ozone-rich atmospheric conditions in a controlled and accelerated environment, this equipment enables manufacturers to assess the degree of surface cracking, degradation, and other property changes that occur when rubber materials are exposed to ozone over time.
The Ozone Resistance Test Chamber is a specialized environmental test chamber designed to evaluate the ozone resistance and anti-aging performance of rubber and elastomeric products. By simulating natural ozone-rich atmospheric conditions in a controlled and accelerated environment, this equipment enables manufacturers to assess the degree of surface cracking, degradation, and other property changes that occur when rubber materials are exposed to ozone over time.
| Parameter | Specification |
|---|---|
| Model | HD-E801 |
| Internal Dimension (W×D×H) | 500 × 600 × 500 mm |
| External Dimension (W×D×H) | 1000 × 1000 × 1750 mm |
| Temperature Range | RT+10 ~ 60℃ (Recommended: 40℃ ± 2℃) |
| Temperature Fluctuation | ±1℃ |
| Ozone Concentration | 50 ~ 1000 pphm (Adjustable) |
| Ozone Concentration Deviation | ±10% |
| Sample Holder | SUS#304 Stainless Steel |
| Temperature Controller | Programmable Touch Screen Controller |
| Ozone Concentration Analysis | Concentration Analysis Meter |
| Ozone Generator | High Pressure Silence Discharge Type |
| Protection System | Leakage, Short Circuit, Over Temperature, Over Heat |
| Test Criteria | ASTM D1149, ISO 1431, JIS K6259 |
